 Question:

I own a 12VDC GE60 Ozone Generator. I will be using it in places where there is only a 12VDC system, but I have other electrical devices which require standard household current. Do you have any suggestions?


Answer:

=== You didn't mention in your email what type of electrical devices you need to use, but provided the draw is not too heavy (see chart below), you might consider using a DC to AC Power Inverter.

A Power Inverter is an electronic device that converts low voltage DC (direct current) electricity from a battery or other power source to standard 115 volt AC (alternating current) household power.

The power inverter converts power in two stages. The first stage is a DC-to-DC converter that raises the low voltage DC at the inverter input to 16 volts DC. The second stage is the actual inverter stage. It converts the high voltage DC into 115 volts, 60 Hz AC.

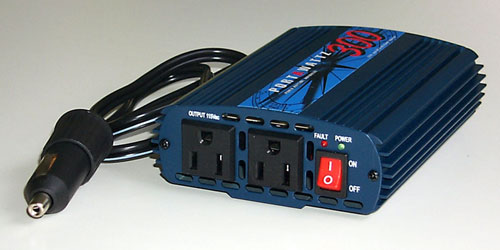

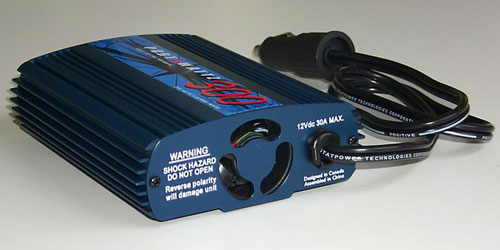

Power Inverter Front View Power Inverter Rear View


Battery Size
Output Power
(watts)
Typical Load 22NF
(Small Car)
24
(Full-Size Car)
27
(Van, RV, or Boat)
50 Stereo System 9 hours
Operating Time
14 hours
Operating Time
20 hours
Operating Time
100 19" Colour TV 4 hours
Operating Time
6 hours
Operating Time
10 hours
Operating Time
200 Computer System 2 hours
Operating Time
3 hours
Operating Time
4.5 hours
Operating Time
300 Blender 1.3 hours
Operating Time
2.2 hours
Operating Time
3 hours
Operating Time

Ozone Services Products
Instrument Direct Power Draw Inverter Power Draw from 12VDC battery when powering listed instrument(s)
120VAC 12VDC
AquaTriO 0.175Amp N/A 2.45Amp
SteamTriO 0.17Amp N/A 2.45Amp
OXY500 0.8Amp N/A 10Amp
GE60 0.25Amp (AC/DC Adapter) 1.45Amp N/A (can be powered directly from 12VDC)

Technical Information (for above unit - please check the packaging of the unit you are considering for technical specifications:

Max. Continuous Power 300 W
Surge Capacity (peak power) 500 W
Optimum Efficiency 90%
No Load Current Draw 0.18A
Wave Form Modified Sine Wave
Input Voltage Range 10-15 VDC
Low Voltage Alarm Yes (10.7 Volts)
Low Voltage Cut-Out Yes (10 Volts)
AC Receptacles Dual
Weight 1.8 lbs / 3.96 kg
Dimensions (L x W x H) 6.0 x 4.7 x 1.8

This is not a unit which we sell, but is available for purchase at many department and automotive supply stores.

=== I hope this helps,

=== Take Care

=== The OzoneLab™ Team
