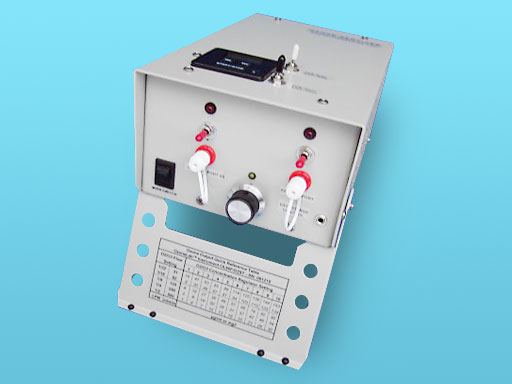

As all OzoneLab™ ozone
generators, OL80F/DST-2S unit is designed to work in conjunction
with Oxygen Flow Regulators and/or Flow
Mass Controllers supplying oxygen output in flow range zero to
1LPM. ((0.005ml/min) - 1000ml/min), and has a built-in ozone
destructor.
|
 |
Pricing
and model comparison chart
S = Standard | O =
Optional | N/A = Not Applicable
OzoneLab™ OL80 (90° panel
series) Technical Data:
Ozone
Production
Stabilization Time: |
• 3
minutes to 90% of reference output is reached
• 6
minutes to 100% of reference output is reached
• after
10 minutes - 105% of reference output is reached |
| O2/O3
Ports: |
Kynar® (PVDF) Female
Luer Lock |
| Gas
Pressure: |
Standard Range 0-3 p.s.i.
|
| Flow
Range: |
Standard Range 31-1000ml/min
|| Extended range 5-1000ml/min (MAX) |
| Humidity: |
below 90% R.H. |
| Temperature: |
Standard range 16-26C
|| Extended Range 10-30C |
| Cooling: |
Air cooled instrument
- 3" fan |
| Power: |
12VDC/1500mA (100-240VAC/12VDC Power
Adapter w/IEC320 receptacle is included) |
| Enclosure: |
Aluminum construction
with laboratory grade heat tempered coating |
| Enclosure
Size: |
5.75 x 9.5 x 4.00" (WxHxD) |
| Weight: |
1.5kg / 3.5Lb |
| Warranty: |
12 months |
| Compliance: |
CE |
For applications exceeding
outlined conditions of operation, please contact
us for more information on custom produced instruments and accessories.
Ozone Output Information
| OL80
Module (Single Stage) |
Typical
Ozone Output for single stage
OL80 Ozone Generator
Flow
LPM |
Flow
ml/min |
Output
µg/ml |
Output
[mg/hr] |
| 0 |
0 |
0 |
0 |
| 1/32 |
31 |
0
- 161 |
0
- 299 |
| 1/16 |
62 |
0
- 131 |
0
- 487 |
| 1/8 |
125 |
0
- 93 |
0
- 698 |
| 1/4 |
250 |
0
- 57 |
0
- 855 |
| 1/2 |
500 |
0
- 33 |
0
- 990 |
| 3/4 |
750 |
0
- 23 |
0
- 1035 |
| 1 |
1000 |
0
- 17 |
0
- 1020 |
• OL80
Sample Output Test Report
• OL80
Ozone Output Graphs
|
|
- Note that
we are able to provide Custom Ozone Output adjustments in the
range of
10% - 100% of the Typical Ozone
Output. Contact us for details.
- Each ozone generator
is tested and calibrated separately using 2" H2O back pressure.
- OzoneLab™ instruments
are designed for low flow/high output applications and are not
suitable for flow rates above 1000ml/min due to the size
of orifices in the ozone gas flow path. Gas Pressure is 0-3 p.s.i. (For applications dealing
with higher pressures - please contact us for
more info and/or consultation)
|

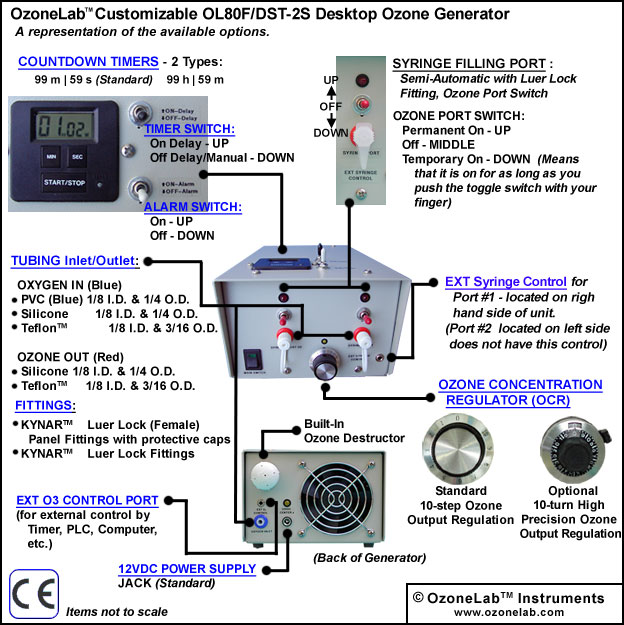

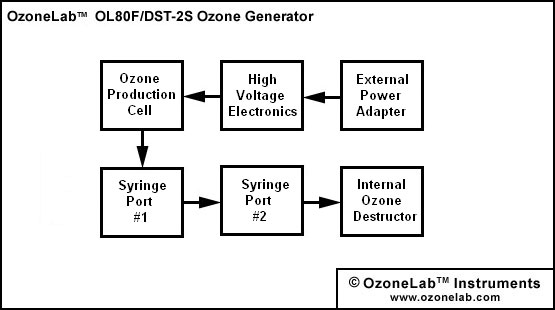

Gas Ports:
Oxygen INLET Port:
- Color code: Blue
- Oxygen gas is supplied to Oxygen
Inlet Port located at the back side of the ozone generator.

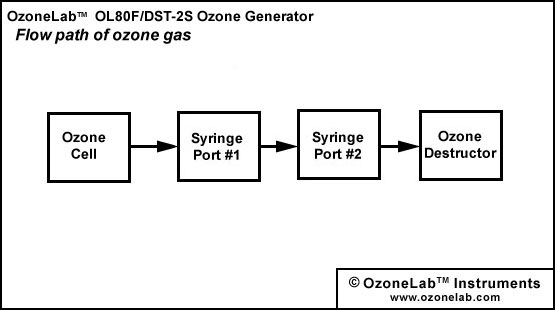

Ozone OUTLET Ports:
- Color Code: Red
- Port #1 (right hand side)
- Preferable choice for filling
syringes (Syringe Filling Port)
- Can be activated by corresponding
Syringe Filling Switch or via EXT Syringe Control
- Port #2 (left hand side)
- Should be used for all
secondary applications (water ozonation, etc.)
- Can be activated only by
corresponding Syringe Filling Switch
- When neither Syringe Filling
Port (#1 or #2) is active, the ozone gas is channeled directly to the Ozone
Destructor.
Built-in External Control
Ports

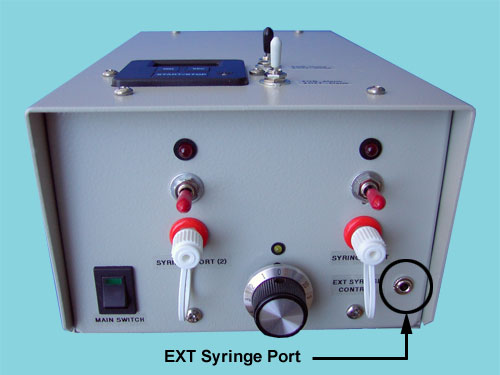

These pictures show the
locations of the EXT Syringe
Control Port and EXT
O3 Control Port. Available options for these ports are available
in our Accessories area.
Examples
of External Ozone Production & Ozone Flow Control Devices
|
OzoneLab™ OL80F/DST-2S
Desktop Ozone Generator
Home > Products > Generators > OL80F/DST-2S
Desktop Ozone Generator (90° panel series)
